Thông tin chi tiết sản phẩm:
Thanh toán:
|
| LXW: | 4000x1600mm | Chiều cao giàn: | 800mm |
|---|---|---|---|
| Trục chính côn: | BT50 | Max.Drilling Diamter: | Φ70 mm |
| Chiều rộng t-slot: | 28mm | Gõ đường kính: | M3-M24 |
| Tốc độ trục chính: | 30~3000 vòng/phút | Công suất động cơ trục chính servo: | 22kw |

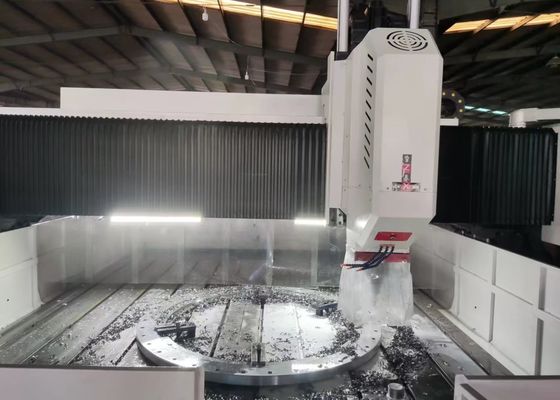

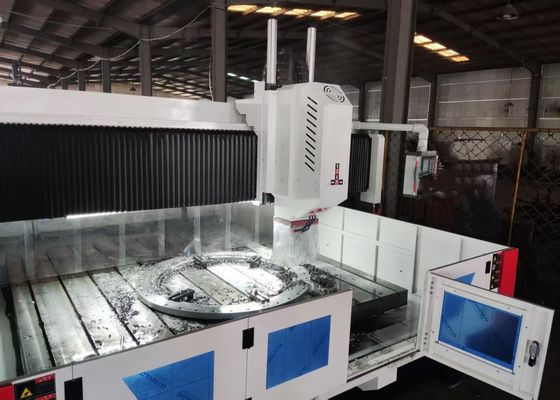

4000x1600mm Workpiece Size CNC Plate Flange Drilling Milling Machine 800mm Gantry Height
Application:
This equipment is engineered for drilling, chamfering, tapping, and milling operations on plate and structural components. It is primarily designed for high-efficiency drilling of workpieces—including flanges, discs, rings, and plates—with thicknesses falling within the effective processing range. The unit enables the machining of through holes and blind holes on both single-material parts and composite materials. Equipped with digital control for its machining processes, the machine tool offers exceptional operational convenience, supporting automated production, high-precision manufacturing, multi-variety processing, and large-scale production requirements.
Specifications:
| Workpiece size | LxW | 4000x1600 mm |
| Gantry height | 800 mm | |
| workbench | T-slot width | 28mm |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT50 | |
| Max.drilling diamter | Φ70 mm | |
| Max.thickness | ≤180 mm | |
| Tapping diameter | M3-M24 mm | |
| Spindle speed | 30~3000 r/min | |
| Servo spindle motor power | 22kW | |
| Distance from the lower end of the spindle to the worktable | 200-800mm | |
|
Lateral movement of power head (X axis) |
Max.horizontal stroke | 1600 mm |
| Lateral movement speed | 0~9 r/min | |
| Servo motor power for lateral movement | 1x2.4 kW | |
|
Gantry longitudinal movement (Y axis) |
Max. feed stroke | 4000 mm |
| Feed moving speed | 0~9 m/min | |
| Feed servo motor power | 2x4.2kW | |
| Vertical ram feed motion (Z axis) | Max. stroke | 600 mm |
| Moving speed | 0~9 m/min | |
| Servo motor power | 1x2.4 kW | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C | ±0.015/1000mm |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C | ±0.01/1000mm |
| Overall size | LxWxH | 6000x3900x2700 mm |
Split casting structure:
This equipment is mainly composed of bed worktable, mobile gantry, mobile saddle, drilling and milling power head, automatic lubrication device and protection device, circulating cooling device, digital control system, electrical system and so on. Supported and guided by rolling guide rails, driven by precision screw, the machine tool has high positioning accuracy and repeat positioning accuracy.
Product Features
1. Bed and Workbench:
The bed is constructed from HT250 gray cast iron, undergoing secondary annealing and aging treatments prior to final finishing. It boasts excellent dynamic and static rigidity with zero deformation. Two sets of high-precision linear guideways are mounted on both sides of the bed base, ensuring uniform force distribution on the guideway sliders while significantly enhancing the machine tool’s overall rigidity, tensile strength, and compressive resistance. The drive system incorporates AC servo motors paired with precision ball screw assemblies, enabling the gantry to achieve smooth Y-axis movement. The workbench is furnished with a hydraulic cylinder clamping system for secure workpiece fixation.
2. Mobile Gantry:
The mobile gantry is manufactured via casting from HT250 gray cast iron, with two sets of ultra-high load-bearing rolling linear guideway assemblies mounted on its front side. A precision ball screw assembly paired with a servo motor drives the power head slide plate to achieve precise X-axis movement, and the drilling power head is affixed to this slide plate. The gantry’s traversal is accomplished by the servo motor—via a precision coupling—driving the ball screw nut to rotate along the ball screw, ensuring stable and accurate motion.
3. Mobile Saddle:
The mobile saddle is fabricated from precision-cast iron structural components. It is equipped with two sets of ultra-high-load-capacity CNC linear guideway carriages, a precision ball screw assembly, and a high-precision planetary reducer connected to the servo motor. This configuration balances the weight of the power head, reduces the load on the lead screw, and extends the lead screw’s service life. The system drives the drilling power head to perform precise Z-axis movement, enabling functions such as rapid feed, working feed, rapid retraction, and stopping. It also integrates automatic chip breaking, chip removal, and pause capabilities for enhanced operational efficiency.
.
This high-performance CNC gantry industrial machine is specialized in drilling and marking operations for plates and sheet metal components. It is meticulously engineered to deliver precision machining of plate-type workpieces and structural parts, with specific adaptability to processing flanges, discs, rings, flat plates, and similar components. A core requirement is that the thickness of the workpieces must strictly comply with the machine’s preset effective machining parameters.
In steel structure manufacturing facilities, this equipment performs precision drilling and milling on structural plates and connecting elements, establishing a dependable foundation for the stable assembly of steel frameworks. Within the wind energy sector, it provides high-precision machining solutions for wind turbine towers and flanges— a critical process that ensures these components can endure harsh environmental conditions (e.g., strong winds, temperature fluctuations). For bridge construction projects, the equipment processes bridge girders and support brackets, enabling the formation of stable, durable connections engineered to withstand dynamic loads over the bridge’s long service life.
