Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Kích thước phôi: | 1000x1000mm | Chiều rộng khe chữ T của Bàn làm việc (mm): | 28 |
|---|---|---|---|
| Độ côn trục chính: | BT40 | Tối đa. đường kính khoan (mm): | Φ50 |
| Tối đa. Độ dày (mm): | 180 | Đường kính khai thác: | M3-M20 |
| Tốc độ trục chính (R/Min): | 30~3000 | Công suất động cơ trục chính của servo (KW): | 11 |

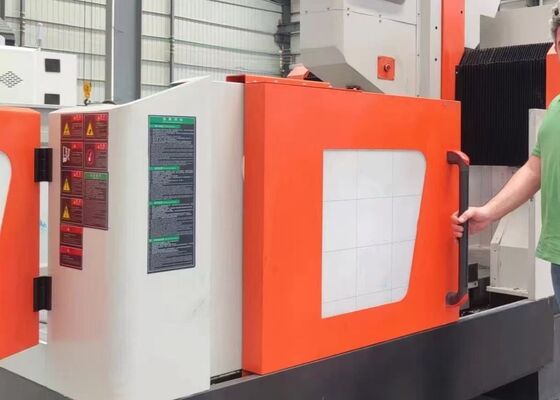

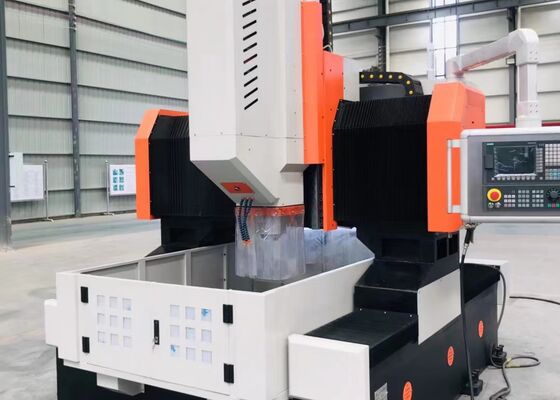

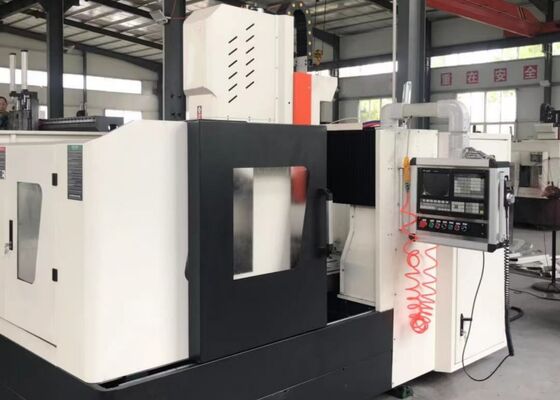

Used For Tube Sheet Plates Flanges Cnc Drilling Machine 11KW Servo Spindle Motor Power
Product Introduction:
The equipment is specifically designed for machining tube sheet plates and flanges, supporting hole diameters up to φ80mm. Its primary functions encompass drilling, reaming, boring, tapping, chamfering, and milling. It is suitable for use with both carbide and conventional drill bits. The CNC control system is user-friendly, facilitating straightforward operation. The machine consistently achieves exceptional precision and performance.
Product configuration:
| Model | PHD1010 | |
| Workpiece size | LxW (mm) | 1000x1000 |
| T-slot width of Workbench (mm) | 28 | |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT40 | |
| Max. drilling diameter (mm) | Φ50 | |
| Max. thickness (mm) | ≤180 | |
| Tapping diameter | M3-M20 | |
| Spindle speed (r/min) | 30~3000 | |
| Servo spindle motor power (kW) | 11 | |
| Lateral movement of power head (X axis) | Max. horizontal stroke (mm) | 1000 |
| Lateral movement speed (r/min) | 0~8 | |
| Servo motor power for lateral movement (kW) | 2.4 | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke (mm) | 1000 |
| Feed moving speed (m/min) | 0~8 | |
| Feed servo motor power (kW) | 2.4 | |
| Vertical ram feed motion (Z axis) | Max. stroke (mm) | 400 |
| Moving speed (m/min) | 0~8 | |
| Servo motor power (kW) | 2.4 | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.02/1000 |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.01/1000 |
| Electrical system | CNC system | FAGOR/ KND/ GSK |
| Tool changer | Disc type (Optional) | 24 tool positions |
| Overall size | LxWxH (m) | 3.2x2.2x2.2 |
Product Features
1. The machine’s frame and crossbeam are manufactured from welded steel structures and subjected to comprehensive stress-relief heat treatment to guarantee high accuracy. The worktable, transverse sliding table, and ram are made of cast iron, offering superior durability and structural rigidity.
2. The dual servo drive system on either side of the X-axis provides precise and synchronized gantry movement, ensuring excellent perpendicularity between the Y and X axes.
3. The worktable is constructed from high-quality cast iron, providing reliable operation, excellent rigidity, and long-term stability.
4. The drilling spindle features a high-rigidity, precision-engineered BT40 design and is equipped with an internal coolant delivery system for enhanced machining efficiency and simplified tool replacement. The spindle speed range extends from 30 to 3000 rpm.
5. Two plate-chain chip conveyor systems are positioned on both sides of the worktable. These units efficiently collect metal chips and coolant, facilitating effective chip management and coolant recirculation.
6. The machine is equipped with both internal and external coolant systems, each delivering sufficient pressure and flow capacity for optimal machining performance. Coolant level monitoring devices are also integrated to ensure effective lubrication and cooling of the cutting tools throughout operation.
7. The machine incorporates a centralized automatic lubrication system that provides continuous and dependable lubrication to key motion components, including guideways, ball screws, and rolling bearings, helping to extend the operational lifespan of these critical elements.
8. The CNC control system is the 828D model, offering comprehensive functionality, integrated CAD-CAM programming, user-friendly operation, as well as automatic alerts and error compensation features.
9. The machine is equipped with key components from internationally renowned brands, including linear roller guideways, ball screws, servo motors and drivers, the spindle, CNC control system, hydraulic pumps and valves, and cooling pumps. This guarantees exceptional reliability and consistently stable operational performance.
The CNC gantry plate cutting machine is a robust industrial solution, meticulously engineered for precise machining of plate-type components and structural parts. It is specifically designed to process workpieces such as flanges, discs, rings, and flat plates, as long as the material thickness remains within the machine’s designated effective machining range.
In steel fabrication facilities, this plate drilling machine carries out high-precision drilling and milling operations on structural plates and connection components, providing a dependable basis for the construction of strong and reliable steel structures. In the wind power sector, it delivers accurate machining of wind turbine towers and flanges, ensuring these critical components can withstand demanding environmental conditions, including high wind loads and temperature fluctuations. For bridge engineering applications, the machine processes bridge girders and support structures, enabling the formation of secure and durable connections capable of enduring dynamic stresses throughout the operational lifespan of the bridge.
