Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tối đa. chiều rộng tấm xử lý: | 1000mm | Độ dày tấm gia công: | 2-100mm |
|---|---|---|---|
| Chiều dài tấm gia công: | 100mm～∞ | Tối thiểu. phôi: | 50x50x2mm |
| Max. tối đa. Loading Capacity tải công suất: | 500kg | Công suất máy: | 28kw |
| Động cơ thức ăn chăn nuôi: | 2 | Tốc độ cho ăn: | 10～4000 mm/phút |
| Làm nổi bật: | plasma cutting plate deburring machine,steel plate polishing equipment,steel structure fabrication machine |
||

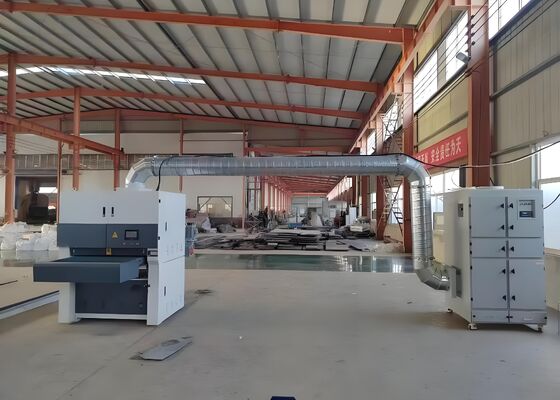

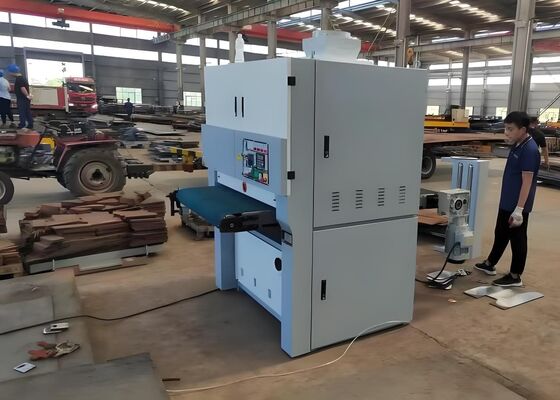

Plasma Cutting Plate Deburring Steel Plate Polishing Machine Steel Structure Fabrication Equipment
Equipment Purpose:
The plate polishing machine is specifically engineered for the polishing of metal plates that have been subjected to laser cutting or plasma cutting operations. Its primary function is to enhance the surface quality of these plates by eliminating burrs, rough edges, and other defects resulting from the cutting process. This ensures that the plates achieve a smooth, refined, and consistent surface finish, thereby improving both their aesthetic appearance and operational performance, making them suitable for a wide range of applications.
Product Configuration:
| No. | Model | BP1000 |
| 1 | Max. processing plate width | 1000mm |
| 2 | Processing plate thickness | 2-100mm |
| 3 | Processing plate length | 100mm～∞ |
| 4 | Min. workpiece | 50x50x2mm |
| 5 | Max. loading capacity | 500kgs |
| 6 | Machine power | 28KW |
| 7 | Feed motor | 2 |
| 8 | Feeding speed | 10～4000 mm/min |
| 9 | Abrasive belt deburring slag, burrs | Height less than 1.5mm |

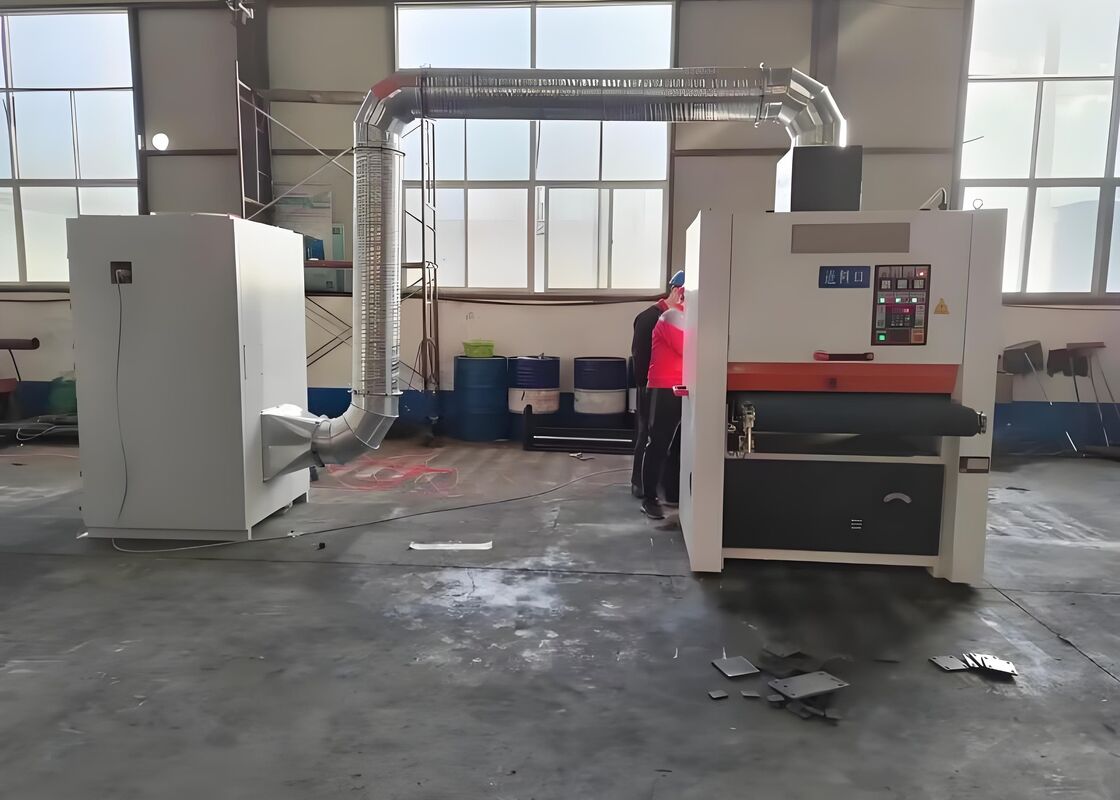

| 10 | Cartridge dust collector | 5.5KW |
| 11 | Cartridge dust collector size | 1000x1000x2100mm |
| 12 | Machine dimensions | 2450x1700x2150mm |
Application industries:
This type of polishing machine is extensively utilized in industries where superior metal surface quality is a critical requirement. It is broadly applied in the manufacturing of electric power transmission towers, communication towers, power fittings, steel frameworks, storage shelving, and similar products. These sectors rely on polished metal plates to ensure the structural strength, visual appeal, and long-lasting durability of their products.
Equipment features:
1. Automatic Continuous Feeding:
The machine is designed with an automatic continuous feeding mechanism that accommodates plates of unlimited length. This functionality boosts production efficiency by enabling uninterrupted material processing, thereby contributing to a reduction in overall manufacturing costs. It guarantees smooth, continuous operation, making it an ideal solution for high-volume production settings.
2. CNC Control:
Equipped with a CNC control system, the machine ensures precise and reliable plate processing. Real-time communication of operational data and status updates allows operators to receive immediate feedback, ensuring seamless and error-free operation. This feature streamlines the control and monitoring processes, simplifying the management of the production line.
3. CNC PLC and Touch Screen Control:
The system incorporates a CNC PLC (Programmable Logic Controller) paired with a user-friendly touch screen interface. Operators can effortlessly start and stop the machine with a simple touch, streamlining the operation process. The intuitive layout of the control system ensures ease of use and minimal maintenance, requiring little training for staff.
4. Pneumatic Tensioning Device:
The polishing machine is fitted with a pneumatic tensioning device that ensures stable and reliable operation. This system precisely controls the tension of the abrasive belt, thereby prolonging its lifespan and preserving optimal polishing efficiency. It guarantees the belt remains properly aligned during operation, preventing excessive wear that could compromise the quality of the polishing process.
5. Simple, Safe, and Efficient Operation:
The machine is engineered for user-friendly operation and ease of maintenance. Its intuitive control system ensures a high level of safety and reliability, minimizing the likelihood of operational errors. Furthermore, the machine is designed to maximize production efficiency, facilitating smooth and consistent operations, reducing downtime, and enhancing overall throughput.
A plate polishing machine is primarily designed for the refinement of metal plates that have undergone laser or plasma cutting processes. These machines are engineered to smooth and enhance the surface quality of the plates, effectively eliminating burrs, rough edges, or oxidation marks left by the cutting methods. By delivering a superior finish, plate polishing machines not only improve the visual appeal of the plates but also optimize their performance in subsequent operations or applications. Such machinery is extensively utilized in industries like metal fabrication, manufacturing, and automotive, where precision and surface quality are paramount.
