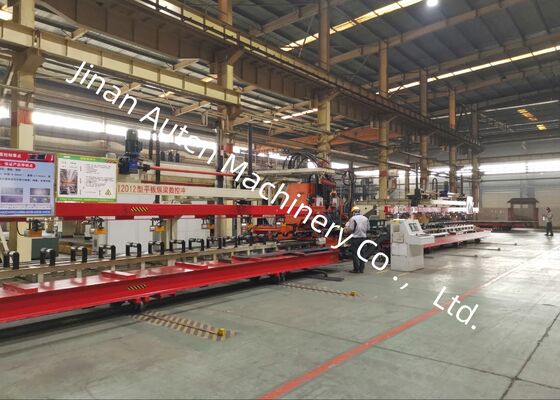

25 Modules CNC Light Truck Beam Punching Machine With Thick Longitudinal Beams 8000mm Length
Application:
Our company has designed and developed an advanced, high-efficiency, and high-precision automated sheet metal processing system, specifically tailored for the punching of high-strength automotive longitudinal beams. This production line is ideal for processing ultra-wide and ultra-thick longitudinal beams used in specialized vehicles, such as mining trucks and other heavy-duty applications.
Main technical parameters:
| No. | Name | Value |
| 1 | Nominal force | 1200KN |
| 2 | Processing plate size and range | |
| 3 | Length | 4000～8000mm |
| Width | 200～550mm | |
| Thickness | 3～6mm | |
| Incoming sheet material sickle bending | ≤7mm/10m | |
| X-axis sheet unevenness | ≤10mm/1000mm ,≤20mm/8000mm | |
| Y-axis sheet unevenness | 5mm | |
| Sheet warping | ≤50mm | |
| Sheet material mechanical properties | σb=510～850N/mm2 | |
| 4 | Max. Punching diameter | φ60mm |
| 5 | Number of modules | 25 |
| 6 | Max. speed | |
| X-axis | Max=50m/min | |
| Y-axis | Max=30m/min | |
| 7 | Processing accuracy | |
| X-axis | ±0.25/600mm ,±0.50 / 3000mm,±0.7 / 8000 mm | |
| Y-axis | ±0.2 mm / 600 mm | |
| 8 | Processing method | Filtration |
| 9 | Reference |
The X-axis is along the length of the plate, and the X-coordinate of the hole is based on the end of the plate; the Y-axis is the width of the plate, and the reference is the center line. |
| 11 | Operating mode | Manual, automatic |
Product Features
1. The control system is equipped with the SIEMENS 828D CNC system, complemented by servo motor-driven feeding. This setup ensures optimal operational efficiency and maintains consistent precision across the workpieces.
2. A servo-driven central centering device is installed on the feeding support roller, allowing it to effectively process plates with varying cross-sections, accommodating height differences ranging from 0 to 200mm.
3. The system is designed to accommodate up to 25 molds of various diameters, with a quick and user-friendly mold installation process.
4. The loading, punching, and unloading of plates are fully automated, significantly minimizing labor requirements and enhancing operational efficiency.
5. Waste materials are automatically ejected and collected, ensuring a streamlined and efficient production process.
6. The automatic programming software is capable of directly importing graphics from AUTOCAD or .DXF files generated by other CAD applications. Through a user-friendly human-machine interface, it facilitates the automatic creation of machine tool processing programs, thus saving time and minimizing the potential for errors.
The exhibition features a curated collection of completed longitudinal beam samples produced by this production line, representing various specifications utilized in mining trucks and specialized vehicles. These samples effectively highlight the precision of hole positioning, the smoothness of punched edges, and the overall structural integrity, allowing clients and inspectors to visually assess the machining capabilities of the equipment.
This machine is a specialized piece of equipment specifically designed for punching operations on flat longitudinal beams within the automotive sector. It is primarily intended for processing the main beams of trucks and specialized vehicles, ensuring precise hole formation to fulfill the structural assembly requirements of these heavy-duty, custom-designed automotive load-bearing components.
