Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Kích thước tấm: | 1500x800mm | Độ dày tấm: | 5 ~ 25 mm |
|---|---|---|---|
| Đấm lực: | 1000/ 1200kN | Đánh dấu lực: | 800/ 1000kN |
| Cnc hay không: | CNC | Trạm chết: | 4 |

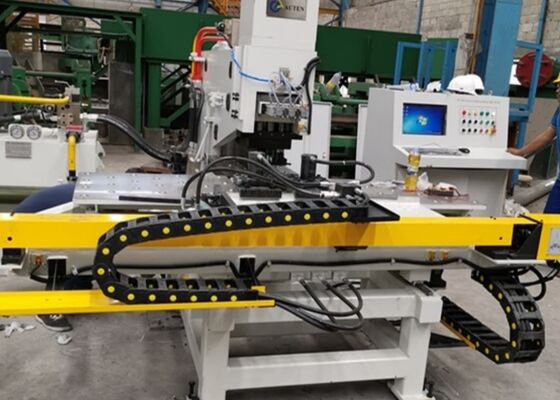

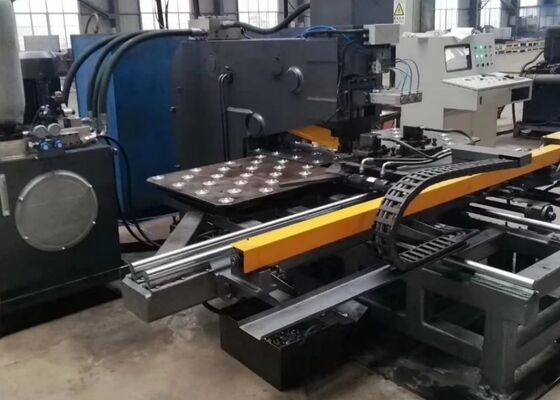

CNC Plate Punching Machine With Overall Dimension 3.2*3*2.6 Meters For Plate Processing
Applicable industry:
The CNC plate punching and drilling machine is specifically engineered for punching, marking, and drilling applications on steel plates within the steel tower manufacturing sector. Additionally, it is extensively adopted for performing punching, drilling, and marking processes on metal plates across various other industrial domains.
Specifications:
| Model | BNC100 | BNCZ100 | BNHD120 | |||
| Max size of work piece (mm) | 1500×800 | |||||
| Max. punching diameter (mm) | Φ26 | |||||
| Max. drilling diameter (mm) | / | Φ50 | ||||
| Taper of drilling spindle | / | / | BT50 | |||
| Plate thickness (mm) | Punching | 5～25 (Q235) | ||||
| Drilling | / | 40 | ||||
| Punching force (kN) | 1000/ 1200 | |||||
| Marking force (kN) | 800/ 1000 | |||||
| Min. distance between hole and plate edge (mm) | Punching | 25 | ||||
| Drilling | / | Depends on hole diameter | ||||
| Character size(mm) | 14×10×19 | |||||
| Qty. of character | 12 | |||||
| Die-stations | 3 | 4 | ||||
| Feeding speed of drilling (mm/min) | / | 25~280 | 0~5000 | |||
| Stroke of drilling spindle(mm) | / | 180 | 350 | |||
| Rotation speed of drilling spindle(r/min) | / | 120~560 | 30~3000 | |||
| Programming mode |
Command programming, Auto CAD drawing or layout software |
|||||
| Overall dimensions L×W×H (m) | 3.2×3×1.9 | 3.2×3×2.6 | 3.3×3.2×3 | |||
Product feature:
1. The frame of the CNC channel steel punching and marking machine is constructed via C-type plate welding, delivering outstanding structural rigidity and ample operational space. Equipped with three die stations (one dedicated to marking operations), the machine enables automatic die station switching for enhanced workflow efficiency. Its clamping system features versatile compatibility with diverse workpieces, adopting a zero-position baffle as the reference datum, while the workpiece is supported by a ball-roller worktable to ensure smooth handling. The X and Y axis movements are regulated by servo motors and transmitted via precision ball screws, with a Programmable Logic Controller (PLC) managing punching position control—thus realizing full automation of the entire machining cycle. Once the workpiece program is input by the operator, it can be retrieved and reused consistently for repeated production runs.
2. The CNC steel drilling machine integrates Computer Numerical Control (CNC) technology and servo motor-driven feeding, ensuring superior operational efficiency and consistent workpiece precision.
3. Core functional components are designed with a modular structure, enabling convenient maintenance and streamlined repair procedures.
4. The CNC metal plate punching and marking machine supports the integration of punching, marking, and drilling processes on a single metal plate, realizing multi-process integration in one operation.
5. The drilling machine unit integrates core functions such as rapid lowering, slow working feed, and quick retraction—all of which significantly boost operational efficiency in practical applications.
6. Equipped with an intelligent fault self-diagnosis system, the machine enables timely detection of operational abnormalities, supporting proactive maintenance and stable production.
7. The programming workflow is engineered with user-centric functionality: operators can input hole diameters, hole coordinates, and workpiece batch quantities into the control system. Furthermore, it supports the deployment of programs generated by lofting software, or enables direct CAD/CAM file conversion for seamless program execution.
Machine details:
This professional metal processing equipment is primarily designed for punching, marking, and drilling operations on steel plates within the steel tower manufacturing sector. It ensures exceptional machining precision, adhering to stringent tolerance specifications and surface finish criteria. Beyond the steel tower industry, this versatile equipment also provides reliable punching, drilling, and marking solutions for metal plates across diverse industrial domains. It sustains consistent operational efficiency and processing accuracy for all types of metal workpieces, thereby optimizing workflow productivity and elevating product quality across multiple industrial applications.
