Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Đánh giá tải thang máy điện: | 700KN | Tải điện trượt định mức: | 700KN |
|---|---|---|---|
| Hiệu suất cắt ống: | 45 chiếc / giờ | Năng lượng máy: | 9kW |
| Tải tải: | 350kg | Nâng chiều cao: | 4000mm |
| Chiều dài ống dầu: | 8500~9750mm | Kích thước tổng thể: | 11200x2300x2700mm |
| Làm nổi bật: | Minor Repair Oil Well Machine,9KW Intelligent Operation Oil Well Machine,9KW Oil Well Machine |
||

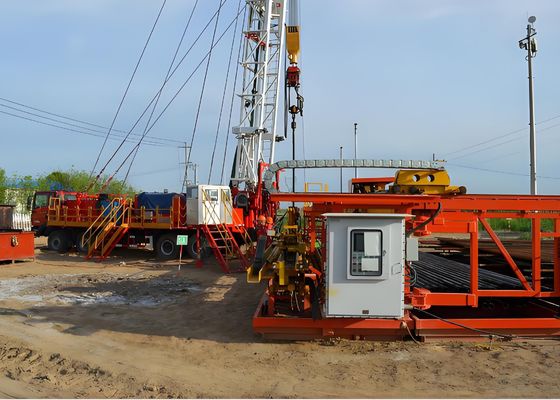

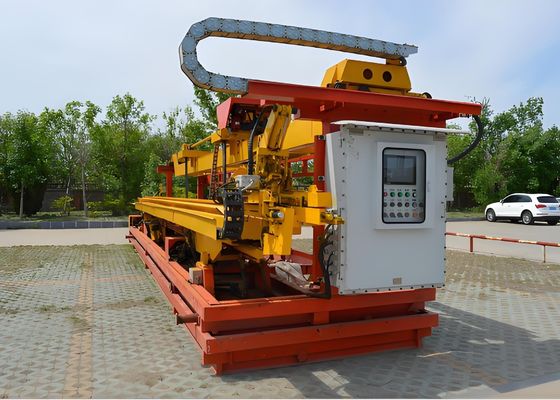

9KW Machine Power Oil Well Minor Repair Intelligent Operation Machine Model XJNC-70/35
Product Overview:
It is primarily suitable for well repair operations in oil, gas, and water wells, including tripping and untripping tubing, drill pipe, sucker rods, and pump recovery. It is currently the most advanced intelligent automated well repair equipment in the domestic and international oil well repair industry.
Specifications:
| Model | XJNC-70/35 |
| Power elevator load rating | 700 kN |
| Power slips rated load | 700 kN |
| Applicable pipe diameter | 2 3/8NU,2 3/8EU,2 7/8NU,2 7/8EU, 3 1/2NU,3 1/2EU,4 1/2NU (Insulated pipe) |
| Pipe tripping efficiency | 45pcs/hour |
| Machine power | 9 kW |
| Lifting load | 350kg |
| Lifting height | 4000mm |
| Oil pipe length | 8500~9750mm |
| Qty. arranged pipes | 300pcs (3 1/2EU) |
| Overall size | 11200x2300x2700 |
Product Advantages:
1. It is an automated, intelligent well repair equipment that automatically grasps and releases tubing, measures and records tubing length, switches between primary and secondary elevators, and automatically raises and lowers tubing, reducing labor intensity during operations and transforming manual labor into manual management.
2. The electronic control system is fully digital, integrating digital control, PLC centralized control, and fieldbus technologies, achieving integrated mechanical, electrical, hydraulic, pneumatic, instrumentation, digital, and communication functions.
3. Network, information, hardware, and software are standardized and highly modular, resulting in intelligent systems, superior performance, simple and reliable operation, and strong interchangeability.
4. Major hydraulic and pneumatic components utilize proven components, offering superior quality and reliable performance. All lighting, signal indicators, and instrument panel electrical equipment operate from a rated 24V power supply.
