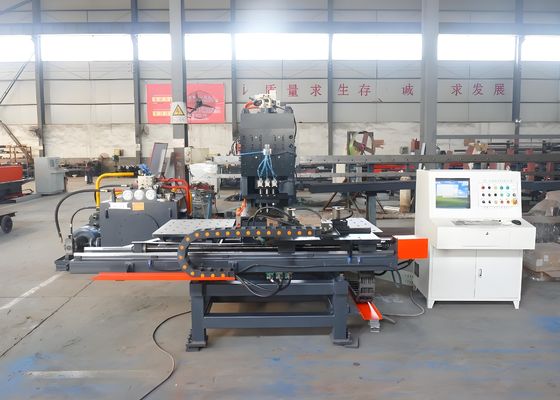

1500*800mm Max Size Workpiece CNC Plate Punching Machine Model BNC100 Φ26mm Max. Punching Diameter
Applicable industry:
The CNC plate punching and drilling machine is applied for punching, marking and drilling operations on steel plates within the steel tower sector. Additionally, it is utilized for punching, drilling and marking processes on metal plates across other industrial fields.
Specifications:
| Model | BNC100 | BNCZ100 | BNHD120 | |||
| Max size of work piece (mm) | 1500×800 | |||||
| Max. punching diameter (mm) | Φ26 | |||||
| Max. drilling diameter (mm) | / | Φ50 | ||||
| Taper of drilling spindle | / | / | BT50 | |||
| Plate thickness (mm) | Punching | 5～25 (Q235) | ||||
| Drilling | / | 40 | ||||
| Punching force (kN) | 1000/ 1200 | |||||
| Marking force (kN) | 800/ 1000 | |||||
| Min. distance between hole and plate edge (mm) | Punching | 25 | ||||
| Drilling | / | Depends on hole diameter | ||||
| Character size(mm) | 14×10×19 | |||||
| Qty. of character | 12 | |||||
| Die-stations | 3 | 4 | ||||
| Feeding speed of drilling (mm/min) | / | 25~280 | 0~5000 | |||
| Stroke of drilling spindle(mm) | / | 180 | 350 | |||
| Rotation speed of drilling spindle(r/min) | / | 120~560 | 30~3000 | |||
| Programming mode |
Command programming, Auto CAD drawing or layout software |
|||||
| Overall dimensions L×W×H (m) | 3.2×3×1.9 | 3.2×3×2.6 | 3.3×3.2×3 | |||
Product feature:

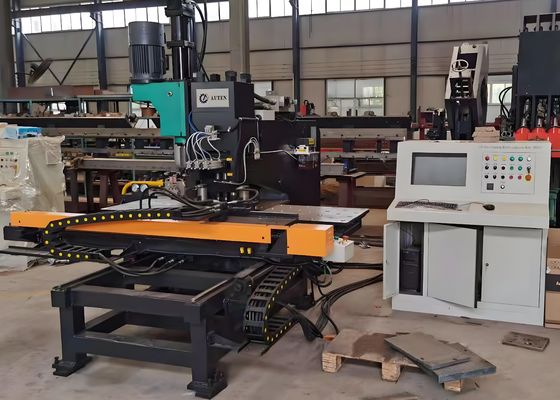

1. The CNC channel steel punching and marking machine frame is constructed via C-type plate welding, featuring excellent rigidity and a spacious operating space. This machine is equipped with three die stations (one of which is a marking die station) that enable automatic die station switching. The clamping system is adaptable to various workpieces, using a zero baffle as the reference mark, while the workpiece is supported by a ball-rolling worktable. The movements of the X and Y axes are controlled by servo motors and driven by ball screws, with a PLC (Programmable Logic Controller) regulating the punching position—thus realizing full automation of the entire machining process. Once the workpiece program is input by the operator, it can be reused repeatedly.
2. The cnc steel drilling machine adopts CNC (Computer Numerical Control) technology and servo motor feeding, delivering high operational efficiency and consistent workpiece precision.
3. Key functional components are assembled in a modular manner, facilitating convenient maintenance and repair.
4. CNC metal plate punch and mark machine enables the integration of punching, marking and drilling operations on a single metal plate.
5. The drilling machine unit is equipped with functions including rapid lowering, slow working feeding and quick retracting, which effectively enhances operational efficiency.
6. It is integrated with a fault self-diagnosis function to enable timely detection of operational anomalies.
7. The programming process is user-friendly: users may input hole diameters, hole positions and workpiece quantities into the computer. Additionally, it supports the utilization of programs generated by lofting software, or enables direct CAD/CAM conversion for program implementation.
Machine details:
This professional metal processing equipment is primarily designed to perform punching, marking, and drilling operations on steel plates within the steel tower industry. It guarantees machining precision, adhering to strict tolerance requirements and surface finish standards. Beyond the steel tower sector, this versatile equipment also delivers reliable punching, drilling, and marking solutions for metal plates across other industrial fields. It sustains consistent operational efficiency and processing precision for all types of metal workpieces, thereby enhancing workflow productivity and product quality across various industries.
